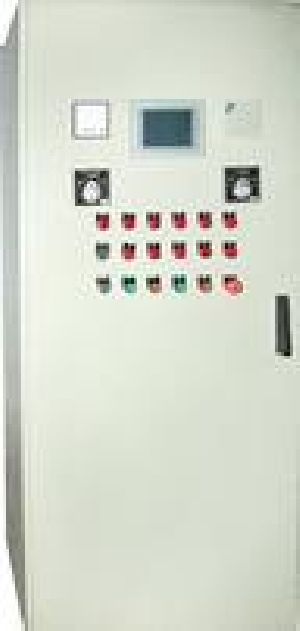

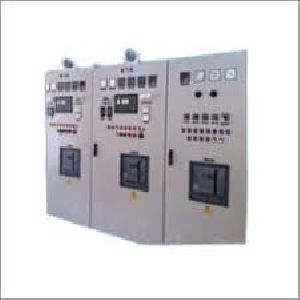

DG Synchronization Panel
 |
|
 |
Salient Features
- Our DG Synchronization panels are made of fully RITTAL or Self Fabricated Enclosures
- MCC Panels are fully modular Type
- Enclosures are Dip Coated and Powder Coated CRCA Sheet Steel
- For low-voltage switchgear with design verification to IEC/EN 61439-1 and -2
- Simple, installation-friendly system assembly
- All switchgears are Branded Like SIEMENS/ABB/SCHNEIDER/L&T/GE Etc
- All Meters are Digital Meters
Dg Sync Benefits
- Automatic Load Sharing in between DG
- Auto Synchronization
- Auto Start is Possible if EB Supply is not available
- DG Operate with its maximum efficiency
- No Overloading. Automatically Start the Next DG
- Manual Intervention is not required
- No need to separate Load based on DG Capacity
- Different Capacity/Make can be synchronized
- Reputed Synchronizing Relay is used in our projects
Specifications
| Voltage & Frequency | 415 V & 50 Hz |
| Systems Voltage | 380/415/440V |
| Bus Bar | Tinned EC Grade Copper/ Aluminum Sleeved with Colored PVC |
| Bus Bar Short Circuit | Up to 50KA for 3 Seconds Duration |
| Type of construction | Free Standing, Floor Mounted, Cubicle Design |
| Degree Of protection | IP 5X |
| Enclosure | RITTAL/Self Fabricated |
| Color | As per Instruction |
| DG Sync Relay | Reputed |
